OEM Dixon Badminton Racket – Top Supplier

Overview

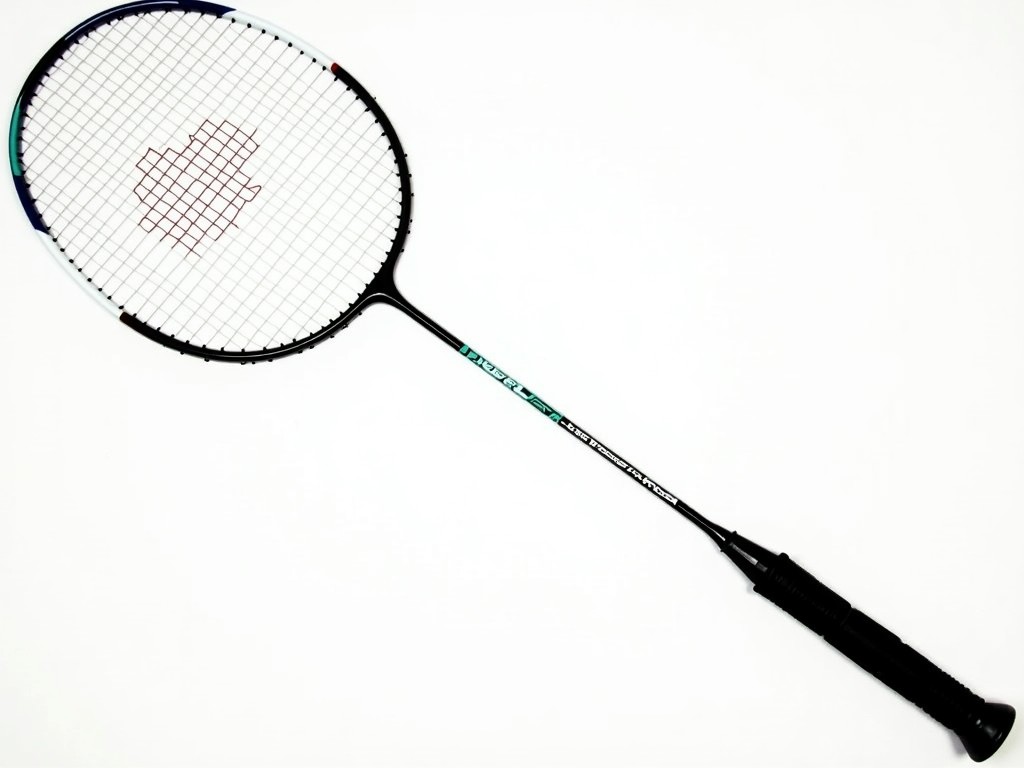

The Dixon badminton racket platform is engineered for OEM partners who require consistent performance across large production volumes. Each racket integrates a lightweight carbon‑fiber frame with a tapered shaft to achieve a head‑heavy balance that favors power smashes while maintaining maneuverability for defensive play. Suppliers that specialize in this platform provide tooling‑ready molds and qualified material lots to support scalable orders.

Key Technical Specifications

Frame and Shaft Materials

The frame utilizes a unidirectional high‑modulus carbon fiber lay‑up oriented at 0° and ±45° to maximize torsional rigidity while keeping the mass low. The shaft incorporates a hybrid CFRP core with dispersed nano‑silica particles, which raises the damping coefficient and reduces vibration transmission to the handle. These material choices are validated through modal analysis, showing a first bending mode frequency of approximately 115 Hz for the standard configuration.

Manufacturing Process

Production begins with automated fiber placement (AFP) for the frame, ensuring consistent resin distribution and low void content (<0.5%). The shaft is fabricated via filament winding followed by a compression molding step that consolidates the nano‑silica filler. After curing at 180 °C for 90 minutes, each racket undergoes CNC trimming of the grommet zone and a precision drilling pattern for string holes, maintaining positional tolerance within ±0.1 mm.

Customization Options

• Frame weight adjustment via selective ply addition or removal (5 g increments)
• Balance point shift through asymmetric lay‑up or weight plugs in the handle
• Shaft stiffness tuning by varying fiber volume fraction (55‑65 %)
• Graphic finishing options: sublimation printing, matte UV coating, or glossy clear coat
• Optional reinforcement strips for extreme tension (>32 lb) applications

Applications in Sports Equipment OEM

OEMs that supply badminton rackets to mid‑tier and premium brands benefit from the Dixon platform’s predictable power‑to‑weight ratio, which simplifies performance tuning across product lines. The head‑heavy bias supports aggressive back‑court play, while the moderate flex enables precise net shots, making the racket suitable for both singles and doubles specialists. Additionally, the standardized grommet pattern allows rapid stringing changeovers, reducing assembly line downtime.

Quality Control and Testing

Each batch undergoes incoming material verification (fiber areal weight, resin viscosity) followed by in‑process monitoring of cure temperature and pressure. Finished rackets are subjected to static load testing (up to 150 N) to confirm frame integrity, dynamic impact testing with a shuttlecock simulator to assess durability, and frequency response analysis to ensure consistency of the flex rating. Acceptance criteria are based on ISO 9001‑aligned statistical process control limits, with a target Cpk > 1.33 for critical dimensions.

Frequently Asked Questions

• Can dimensions be customized? Yes, frame length, shaft taper, and grip circumference can be adjusted per drawing.
• What information is required before quotation? Desired weight, balance point, flex rating, surface finish, and annual volume.
• What materials are available? Standard HM‑CF frame, CFRP shaft with nano‑silica, optional Kevlar reinforcement, and alternative epoxy systems.
• How is quality inspected? Through dimensional CMM checks, tensile testing of sample coupons, and vibrational modal analysis on finished units.
• What packaging methods are available? Individual rackets in low‑density PE bags, then packed in corrugated cartons with corner protection; palletization available for bulk shipments.
• How are export shipments protected? Cartons meet ISPM‑15 standards, and desiccant packs control humidity during transit.
• What is the typical production lead time? 4‑6 weeks after tooling approval and material receipt, depending on order size.
• How are samples arranged? Pre‑production samples are shipped via express coupons with a nominal fee, credited against the first order.

Contact for Technical Partnership

Engineers and procurement managers seeking a reliable OEM supplier for Dixon‑spec badminton rackets can request a detailed technical datasheet, sample evaluation, or volume pricing discussion. Use the link below to initiate a conversation with our application engineering team.
