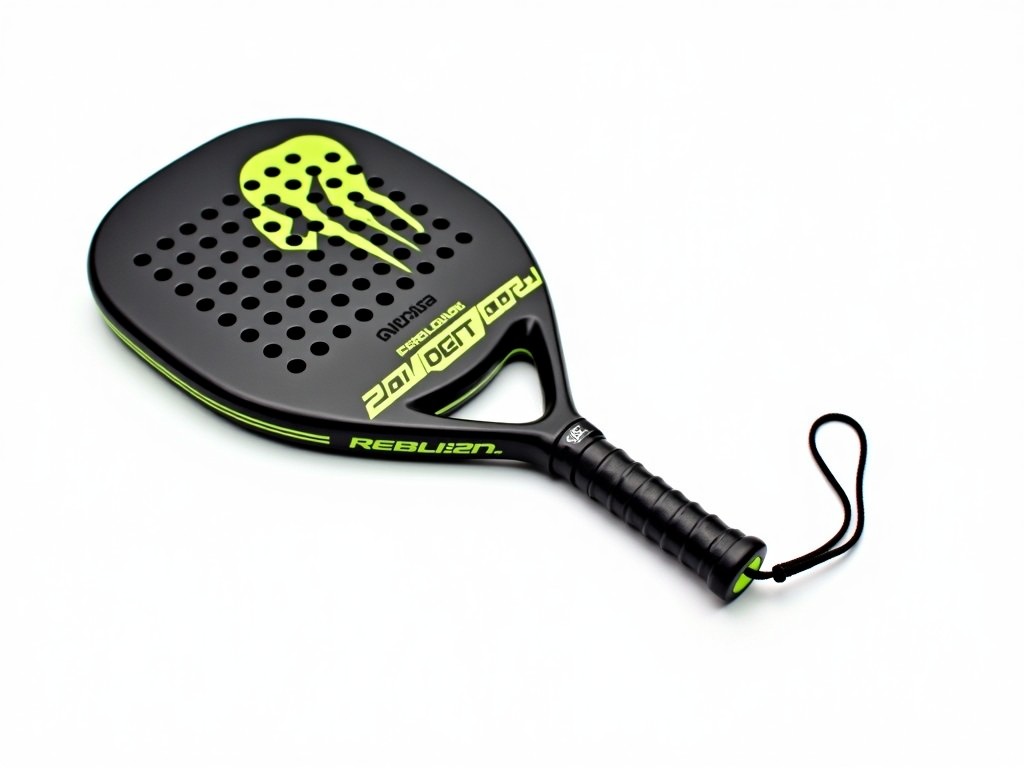

B2B Power Control Padel Rackets Top Supplier
Power control padel rackets are engineered to balance shot velocity with precise directional control, a requirement that directly influences player performance in competitive play. The design focuses
B2B Power Control Padel Rackets – Technical Overview for Industrial Buyers
Power control padel rackets are engineered to balance shot velocity with precise directional control, a requirement that directly influences player performance in competitive play. The design focuses on optimizing mass distribution, frame stiffness, and string bed response to achieve a targeted power‑to‑control ratio. This page details the measurable engineering characteristics that industrial buyers evaluate when selecting a supplier for B2B padel racket production.
Design Parameters and Engineering Approach
The racket geometry follows a teardrop profile with a defined head width of 260 mm and a length of 455 mm, complying with International Padel Federation specifications. Power control is achieved by shifting the balance point toward the handle (typically 260 mm from the butt cap) while maintaining a total mass between 340 g and 360 g. These parameters create a low swing weight that facilitates rapid wrist action without sacrificing momentum transfer.
Frame stiffness is tuned via modulus‑matched carbon fiber layup, targeting a flexural rigidity of 12 kN·mm² measured at the throat. This value ensures sufficient rebound for power generation while limiting excessive vibration that could impair control. The string bed pattern (16 × 19) is selected to provide a sweet spot width of approximately 110 mm, aligning with the power‑control trade‑off.
Material Composition and Mechanical Properties
Primary structural materials include high‑modulus carbon fiber (T800 or equivalent) for the frame and a hybrid core of EVA foam and polyurethane for the handle. The carbon fiber layers are oriented at 0°, ±45°, and 90° to achieve anisotropic strength that resists torsional twist during off‑center impacts.
- Face layers: 3 mm thick carbon fiber‑reinforced polymer with a tensile strength of 5.5 GPa.
- Core: 18 mm EVA foam (density 0.045 g/cm³) reinforced with 2 mm polyurethane ribs for impact damping.
- Handle overwrap: synthetic leather with a coefficient of friction 0.45 to ensure grip stability.
Performance Characteristics
Key performance indicators are quantified through standardized lab tests that simulate match conditions. The table below presents typical values for a standard power‑control configuration; actual numbers may vary based on customization requests.
| Parameter | Typical Value | Test Method |
|---|---|---|
| Total Mass | 350 g ±5 g | Precision balance |
| Balance Point (from butt cap) | 260 mm ±3 mm | Moment measurement |
| Swing Weight | 260 kg·cm² ±10 | Swing weight rig |
| Frame Stiffness (Flexural Rigidity) | 12 kN·mm² ±1 | Three‑point bend |
| Coefficient of Restitution (Ball‑Racket) | 0.42 ±0.02 | Impact test rig |
| Vibration Damping (Decay Time) | 18 ms ±3 ms | Laser vibrometer |
Applications in Padel Equipment Manufacturing
OEMs integrate these rackets into product lines targeting intermediate to advanced players who require a blend of power for aggressive baseline shots and control for net play. The specified balance point and swing weight enable manufacturers to differentiate their offerings without altering the core mold, reducing tooling costs. Additionally, the consistent material tolerances support high‑volume automated assembly lines, improving yield and reducing scrap.
Customization Options
Buyers can tailor specific performance attributes to match brand positioning or regional player preferences. Customization is performed by adjusting layup schedules, core density, or finish treatments while maintaining the base geometry.
- Mass adjustment: ±15 g via core density variation or additional carbon layers.
- Balance shift: ±10 mm toward head or handle by altering mass distribution in the throat.
- Stiffness modulation: 10 % to 20 % change in flexural rigidity through fiber orientation tweaks.
- Surface finish: matte, gloss, or textured coatings affecting grip friction and aerodynamics.
- String pattern alternatives: 14 × 18 or 16 × 20 for varied spin potential.
Quality Assurance and Inspection
Each production lot undergoes dimensional verification, mass sorting, and non‑destructive ultrasonic scanning to detect delamination or fiber misalignment. Finished rackets are subjected to a 500‑shot impact cycle at 30 m/s to evaluate fatigue resistance, with acceptance criteria set at less than 2 % change in stiffness post‑test. Documentation includes material certificates, test reports, and traceability labels attached to the handle.
Comparison Table: Standard vs. Customized Configurations
| Attribute | Standard Configuration | Customizable Range |
|---|---|---|
| Total Mass (g) | 350 | 335 – 365 |
| Balance Point (mm from butt cap) | 260 | 250 – 270 |
| Frame Stiffness (kN·mm²) | 12 | 10 – 14.5 |
| Coefficient of Restitution | 0.42 | 0.38 – 0.46 |
| Surface Finish Options | Matte | Matte, Gloss, Textured |
Frequently Asked Questions
- Can dimensions be customized beyond the standard mold?
- The core geometry (head width, length, and profile) is fixed to meet regulatory standards; however, mass distribution and stiffness can be adjusted within the ranges shown above.
- What information is required before quotation?
- Target mass, preferred balance point, desired stiffness level, finish type, and estimated annual volume help us provide accurate pricing and lead times.
- Which material options are available for the frame?
- Standard supply uses T800 carbon fiber; higher modulus T1000 or hybrid glass‑carbon blends are available upon request for specific performance goals.
- How is quality inspected for large orders?
- Each batch receives 100 % dimensional check, 20 % ultrasonic scan, and a sample set subjected to impact fatigue testing; results are documented in a lot‑specific report.
- What packaging methods protect rackets during export?
- Rackets are placed in individual foam sleeves, stacked in corrugated cartons with corner protectors, and sealed with moisture‑resistant tape; palletization follows ISPM‑15 standards for international shipment.
- What is the typical production lead time?
- For standard configurations, lead time is 4‑6 weeks after PO receipt; customized orders add 1‑2 weeks depending on complexity.
- How are samples arranged for evaluation?
- We can ship up to three prototype units via express coupons; shipping costs are borne by the requester, and samples are refundable upon placing a production order.
Request a Quote or Sample
Industrial buyers seeking technical data, sample units, or a formal quotation should provide the required specifications via our contact channel. Our engineering team will review the parameters, confirm feasibility, and return a detailed response within two business days.
