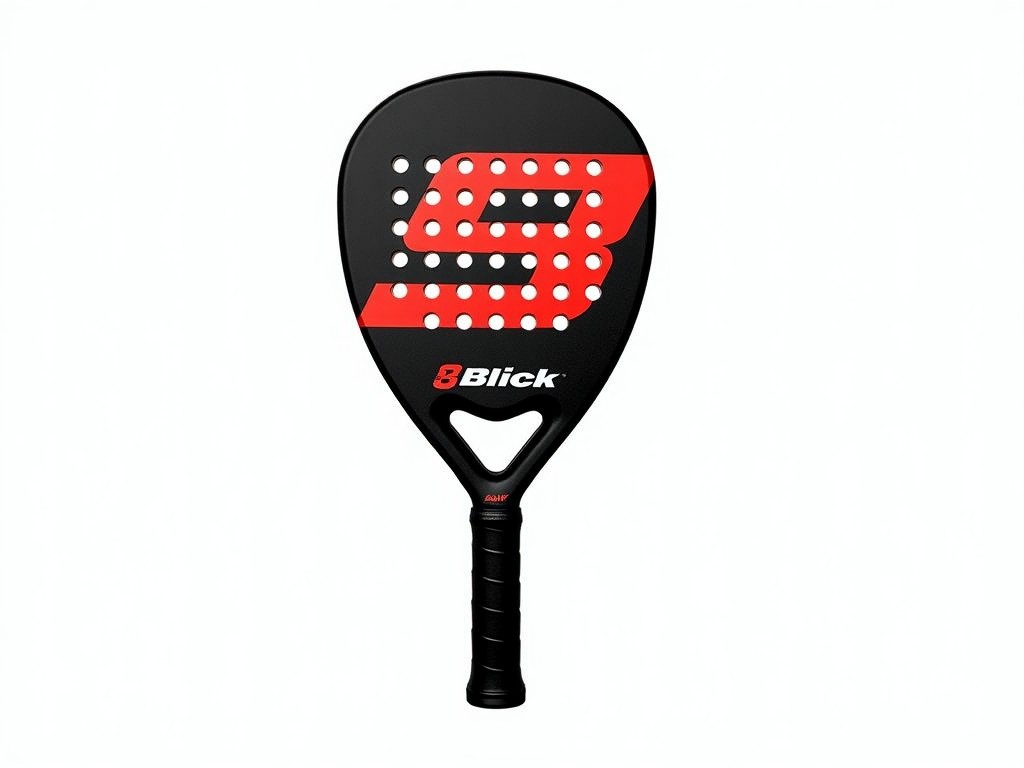

Best Price High Quality Carbon Fiber Padel Racket Company
Carbon fiber padel rackets combine high tensile strength with low density, resulting in a striking power-to-weight ratio that influences ball speed and player fatigue. The orientation of fibers, resin system, and layup thickness directly affect stiffness, vibration damping, and durability under repeated impact loads.
Material Composition and Layup
Typical rackets use a blend of 3K and 12K carbon fiber fabrics, where the smaller tow provides surface smoothness and the larger tow contributes bulk strength. Epoxy resin systems are selected for a glass transition temperature above 80 °C to maintain structural integrity during prolonged play in warm climates.
A common layup pattern places 0° fibers along the longitudinal axis for bending stiffness, ±45° layers for torsional resistance, and a 90° surface layer to distribute impact stresses. The resulting flexural modulus typically ranges from 45 to 55 GPa, while the areal density stays between 12 and 16 g/m².
Manufacturing Process
Fabric prepregs are cut to shape, stacked in a mold, and subjected to vacuum bagging to remove entrapped air before curing. The cure cycle usually involves a ramp to 180 °C at 2 °C/min, a hold of 60 minutes, and controlled cooling to prevent residual stresses.
- Prepreg cutting and kitting
- Layup orientation according to design
- Vacuum bagging and seal check
- Thermal curing in press or oven
- Demolding, trimming, and surface finishing
Quality Control and Testing
Each racket undergoes non‑destructive ultrasonic scanning to detect delamination or fiber breakage larger than 0.5 mm. Dynamic mechanical analysis measures storage modulus across frequencies from 10 Hz to 1 kHz, ensuring consistent stiffness.
Impact resistance is evaluated by dropping a 20 mm steel sphere from 1 m onto the racket face; acceptable specimens show no visible cracks and a residual flexural strength above 80 % of the initial value. Fatigue testing involves 10⁴ cycles at 2 Hz with a peak load of 150 N, confirming durability for competitive play.
Technical Specifications
| Parameter | Typical Value | Unit | Notes |
|---|---|---|---|
| Weight (unstrung) | 340‑380 | g | Depends on grip size and balance |
| Balance Point | 260‑290 | mm from handle end | Head‑heavy for power, even for control |
| Swingweight | 260‑300 | kg·cm² | Measured at 10 cm from tip |
| Flexural Modulus | 45‑55 | GPa | Along longitudinal axis |
| Impact Energy Absorption | ≥1.2 | J | From standard drop test |
Customization Options
Customers can specify grip circumference ranging from 100 mm to 115 mm, with optional perforated or textured surfaces to adjust friction. Weight distribution can be shifted toward the head or handle by altering the layup thickness in specific zones, allowing fine‑tuning of swingweight without changing overall mass.
- Length: 455 mm – 470 mm (standard to extended)
- Shape: Diamond, teardrop, or round head profiles
- Surface finish: Matte gloss, UV‑resistant coating, or anti‑slip paint
- Personalization: Laser‑etched logos, color‑coded grommets
Applications in Padel
The high modulus of carbon fiber enables rapid energy transfer from swing to ball, increasing shot velocity while the damping capacity of the epoxy matrix reduces vibration transmitted to the arm, lowering the risk of tennis elbow. Resistance to moisture and temperature variations ensures consistent performance across indoor courts and outdoor environments exposed to UV.
Because the material does not corrode and maintains dimensional stability after thousands of impact cycles, rackets retain their original balance and sweet spot location over multiple seasons, reducing the need for frequent replacement.
Frequently Asked Questions
Can dimensions be customized?
Yes, length, head shape, and grip size can be adjusted according to player preference; changes outside the standard range may require a new mold and affect lead time.
What information is required before quotation?
We need the desired weight range, balance point, grip circumference, preferred layup orientation, and any cosmetic details such as logo placement or color.
How is quality inspected?
Each unit receives ultrasonic scanning, flexural modulus testing, and impact resistance checks as described in the quality control section; results are recorded and available upon request.
What packaging methods are available?
Rackets are placed in individual polyethylene sleeves, then packed in corrugated cartons with corner protectors; palletizing and moisture‑barrier wrapping are offered for export shipments.
What is the typical production lead time?
Lead time ranges from 3 to 5 weeks for standard configurations; customized orders may add 1 to 2 weeks depending on tooling requirements.
For technical inquiries, sample requests, or a detailed quotation, please contact our engineering team.
