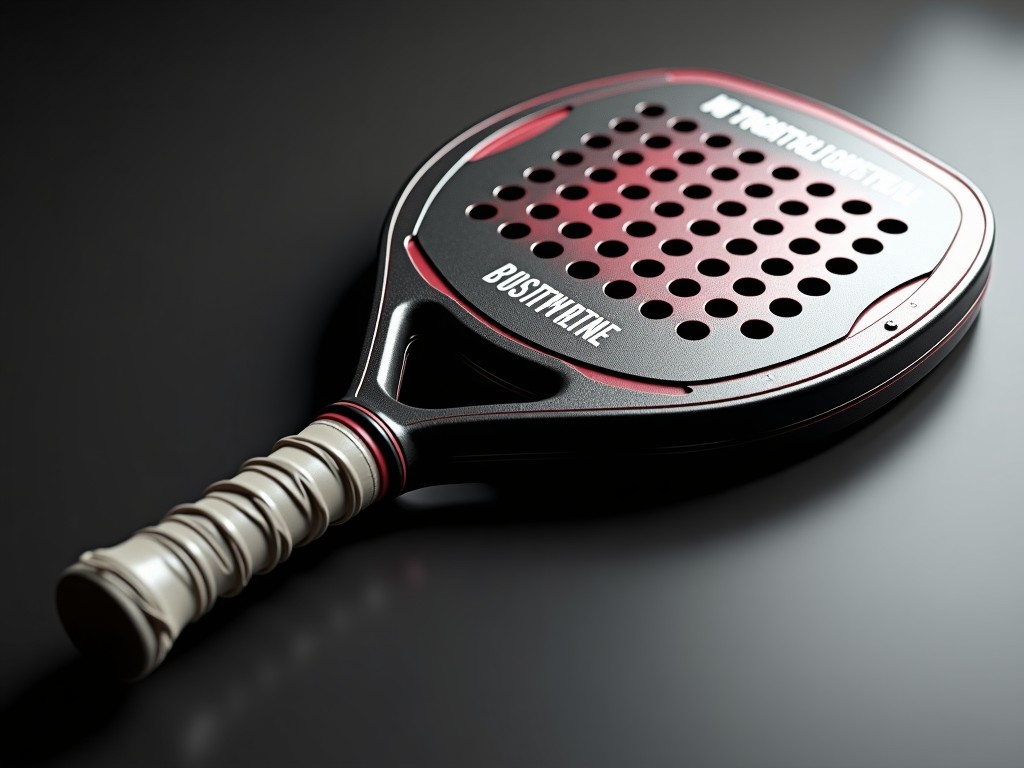

Custom Tactical Spin Padel Racket

Engineers seeking a racket that delivers consistent spin under high‑impact conditions start by examining the interplay between frame stiffness, mass distribution, and surface texture. This page explains how each variable can be tuned to match specific tactical requirements without relying on vague quality claims.

Material Selection

The primary structure combines high‑modulus carbon fiber with selective graphene reinforcement to achieve a target tensile strength above 5 GPa while keeping density under 1.6 g/cm³. Layer orientation is adjusted in 0‑degree, ±45‑degree, and 90‑degree plies to control bending stiffness and torsional resistance.

• Carbon fiber grades: T700, T800, M40J
• Graphene nanoplatelet loading: 0.5 wt% to 2 wt%
• Optional basalt fiber for impact damping
• Resin system: epoxy with Tg > 180 °C

Frame Geometry and Weight Distribution

Swing weight and balance point dictate maneuverability and power transfer. By varying the thickness profile along the hoop and adjusting the location of internal weight inserts, designers can achieve a balance point ranging from 260 mm to 290 mm from the handle end and a swing weight between 260 kg·cm² and 300 kg·cm².

String Pattern and Surface Texture

Spin generation depends on the interaction between string bed stiffness and the roughness of the racket face. A pattern with 16 main strings and 19 crosses provides a moderate string bed stiffness, while a textured silicone‑based coating raises the coefficient of friction to 0.45 – 0.55, enhancing ball bite without increasing aerodynamic drag.

• String pattern options: 16×19, 18×20, 16×20
• String material: polyester, co‑polyester, hybrid
• Surface finish: matte silicone, polyurethane micro‑texture, carbon‑fiber weave exposure
• Texture depth: 10 µm – 30 µm measurable via profilometer

Customization Process

Clients begin by submitting performance targets (desired swing weight, balance, spin rating) and playing style data. Engineers then run a finite‑element simulation to iterate layup schedules and geometry before producing a prototype for on‑court validation. Feedback loops typically converge within three iterations.

• Performance questionnaire (weight preference, grip size, playing frequency)
• Simulation report (stress distribution, natural frequencies)
• Prototype manufacture (hand‑layup, autoclave cure)
• On‑court test (spin rate, ball launch angle, comfort)
• Final production (tooling, quality sign‑off)

Quality Control Philosophy

Each racket undergoes non‑destructive testing to verify modulus uniformity and detect delamination. A laser scanner maps the outer profile to confirm geometric tolerances within ±0.2 mm. Finally, a dynamic impact test measures the coefficient of restitution to ensure energy return stays within the specified band.

Applications in Tactical Training

In tactical drills where players practice rapid direction changes and deceptive shots, a racket with a lower swing weight and a textured face allows quicker wrist acceleration and enhanced bite on low‑bounce balls. Conversely, for power‑oriented sessions, a higher balance point and stiffer frame translate to greater shot velocity without sacrificing control.
