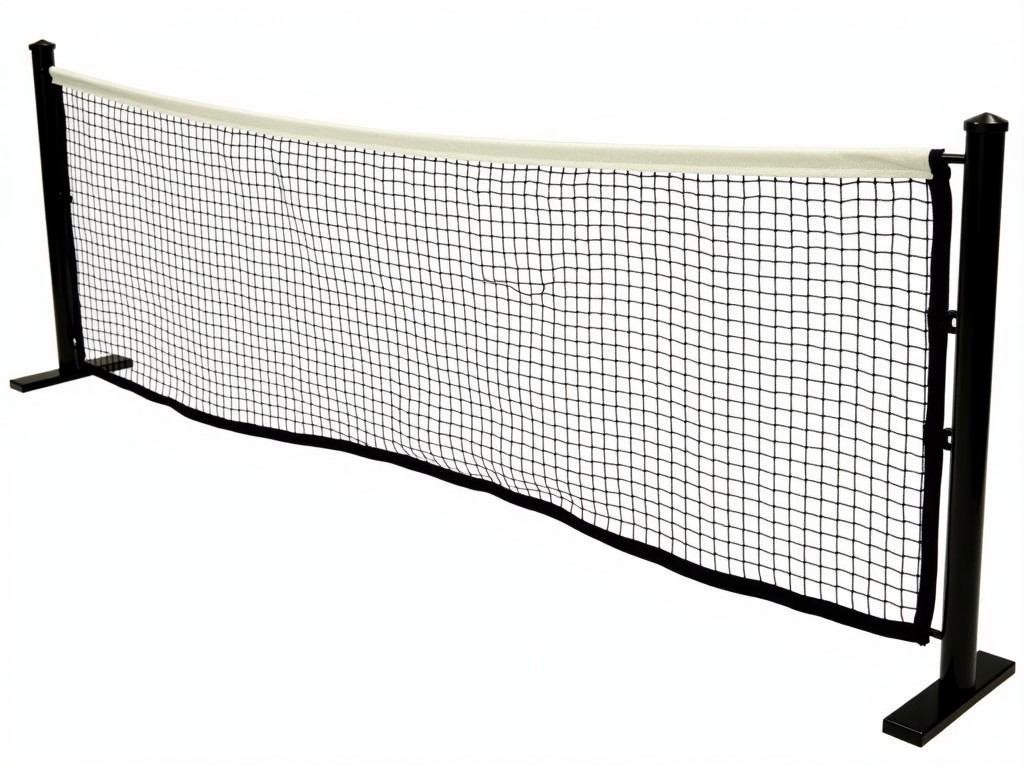

Indoor pickleball courts demand nets that stay taut during intense rallies yet can be removed quickly for multi‑use flooring. An in‑ground anchoring system places stainless‑steel sleeves flush with the concrete, allowing posts to slide in and out without protruding hardware. This configuration eliminates trip hazards and preserves a uniform playing surface.

Standard net height measures 36 inches at the sidelines and 34 inches at the center, matching official pickleball regulations. The net width spans 20 feet, providing full coverage across the court boundary. Mesh openings are typically 1.75 inches square, balancing ball containment with adequate airflow.

Posts are constructed from 2‑inch diameter galvanized steel tubes, offering a yield strength of approximately 55 MPa. Each post incorporates a ground sleeve with an internal diameter of 2.25 inches and a depth of 8 inches, designed to accommodate thermal expansion of the concrete slab. The sleeve features a ribbed exterior to prevent rotation after installation.

Tension is maintained via a ratchet‑style cam mechanism integrated into the post base, allowing adjustment from 20 lb to 50 lb of net pull‑force. The mechanism locks securely without requiring tools, facilitating rapid setup and takedown by facility staff.

The net fabric is made from UV‑stabilized polyethylene with a denier rating of 1500, providing tensile strength above 35 MPa and resistance to mildew. Edge bindings employ double‑stitched polyester tape with a break strength of 50 lb.

Posts receive a hot‑dip zinc coating averaging 85 µm thickness, meeting ASTM A123 standards for corrosion protection in indoor environments. Optional powder‑coat finishes in RAL colors are available for aesthetic matching to facility branding.

Sleeves are fabricated from PVC‑filled polypropylene, offering a compressive strength of 20 MPa and resistance to concrete alkalinity. A stainless‑steel variant (grade 304) can be supplied for projects requiring higher chemical resistance.

Schools and community centers benefit from in‑ground nets because the floor remains unobstructed when the courts are repurposed for basketball, volleyball, or events. The removable posts reduce liability associated with protruding hardware during non‑play periods.

Commercial sports clubs prefer this system for its low maintenance; the stainless‑steel sleeves resist corrosion from cleaning agents and humidity, extending service life beyond five years under typical usage. Facility managers report faster court turnover compared with surface‑mounted alternatives.

Each post undergoes ultrasonic weld inspection to verify joint integrity, with acceptance criteria of zero porosity exceeding 0.5 mm. Dimensional checks confirm outer diameter tolerances of ±0.2 mm and straightness within 0.1 mm per foot.

Net tension is validated using a calibrated load cell, ensuring the cam mechanism delivers the specified 20 lb–50 lb range with repeatability within ±2 lb. Corrosion resistance is assessed via salt‑spray testing per ASTM B117, targeting less than 5 % red rust after 500 hours.

Final assembly includes a functional test where the net is installed, tensioned to 35 lb, and subjected to 500 impact cycles simulating ball strikes; net deflection must remain under 0.75 inch to pass.

Can the net dimensions be tailored to non‑standard court sizes?

Yes, net width and height can be adjusted in increments of one inch to match custom court layouts, subject to manufacturing constraints.

What information is required to receive a quotation?

Please provide the desired net size, post material preference, sleeve depth, coating type, quantity, and delivery destination.

How is product quality verified before shipment?

Each batch undergoes dimensional inspection, tension testing, and corrosion‑resistance evaluation, with test reports available upon request.

What packaging methods protect the nets during transit?

Posts are bundled with protective end caps, nets are rolled on rigid cores, and the entire package is placed in corrugated cartons with corner braces and stretch‑film wrapping.
