China Permanent Pickleball Court Divider Nets Company
These nets are designed to separate adjacent pickleball courts permanently, providing a consistent barrier that withstands outdoor exposure and frequent ball impact. The net uses a high‑density

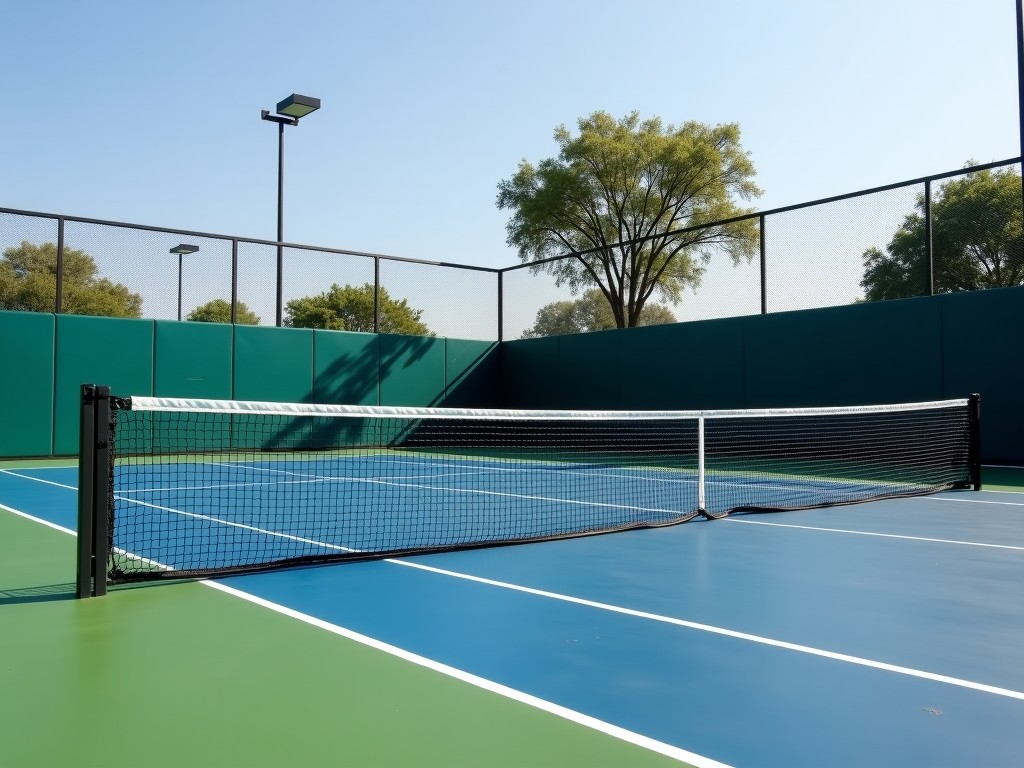

Permanent Pickleball Court Divider Nets
These nets are designed to separate adjacent pickleball courts permanently, providing a consistent barrier that withstands outdoor exposure and frequent ball impact.
Key Engineering Characteristics
The net uses a high‑density polyethylene (HDPE) monofilament with a nominal diameter of 0.8 mm, delivering a tensile strength of approximately 25 kN per meter of width.
Mesh opening is 45 mm square, which meets USAPA specifications for ball containment while allowing adequate airflow.
UV stabilizer content is 2 % by weight, giving an expected outdoor service life of 8–10 years under typical mid‑latitude solar radiation.
Material Options and Construction
- Core yarn: UV‑stabilized HDPE monofilament, denier 1500.
- Edge reinforcement: double‑stitched polyester webbing, width 38 mm, tensile strength 40 kN.
- Bottom hem: PVC‑coated steel cable, diameter 3 mm, corrosion‑resistant zinc alloy.
Typical Dimensions and Customization
Standard height is 915 mm (3 ft) with lengths available in 6 m, 9 m, and 12 m sections that can be spliced using stainless‑steel buckles.
Custom heights ranging from 760 mm to 1220 mm and custom lengths are offered upon request; the net can be supplied with reinforced grommets every 300 mm for easy attachment to posts.
Applications in Sports Facilities
Permanent divider nets reduce cross‑court interference, which improves match continuity and lowers the risk of balls striking players on adjacent courts.
By maintaining a fixed barrier, facility operators save labor associated with temporary net installation and removal, leading to lower operational costs over the net’s lifespan.
Quality Control Overview
Each production lot undergoes visual inspection for mesh uniformity and dimensional checks on height and width using calibrated laser gauges.
Tensile samples are pulled to verify that the net meets the specified 25 kN/m strength; results are recorded and traceable to the batch number.
UV resistance is assessed by accelerated weathering testing (ASTM G154) for 1000 hours, confirming minimal loss of elongation.
Comparison Table
| Parameter | Standard Net | Heavy‑Duty Option |
|---|---|---|
| Filament Diameter | 0.8 mm | 1.0 mm |
| Tensile Strength (kN/m) | 25 | 35 |
| UV Stabilizer (%) | 2 | 3 |
| Expected Outdoor Life (years) | 8‑10 | 12‑15 |
Frequently Asked Questions
Can the net height be customized?
Yes, heights from 760 mm to 1220 mm are available; specify the required height when requesting a quote.
What information is needed for a quotation?
Provide court layout dimensions, desired net height, length of each section, and any reinforcement preferences (e.g., stainless‑steel buckles).
How is the net packaged for export?
The net is rolled onto a rigid core, wrapped in UV‑protective polyethylene film, and placed in a corrugated carton with corner protectors to prevent deformation during transit.
