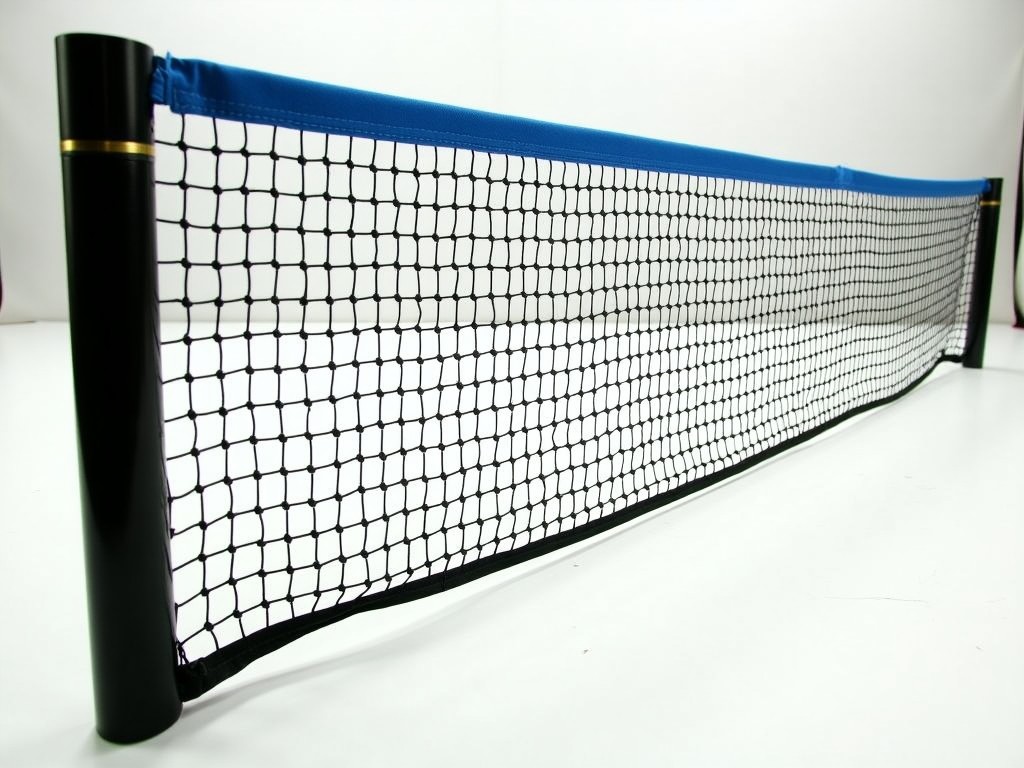

Factory Direct Heavy Duty Outdoor Pickleball Net

This page explains the technical basis for a pickleball net system designed for permanent outdoor installation, manufactured and sold directly from the factory to industrial buyers, contractors, and facility operators.

Design Specifications

The net assembly consists of a polyethylene mesh panel, a perimeter steel frame, and ground anchoring components. Overall width is 6.10 m (20 ft) to match regulation pickleball court dimensions, with a height of 0.91 m (3 ft) at the sidelines and 0.86 m (2.82 ft) at the center, measured from the playing surface to the top edge of the mesh.

Mesh openings are 45 mm square, providing a balance between ball retardation and wind permeability. The perimeter frame uses 2 mm cold‑rolled steel tubing, formed into a rectangular profile with reinforced corner gussets.

Material Selection

The mesh is made from UV‑stabilized high‑density polyethylene (HDPE) with a denier rating of 1500 dtex and a tensile strength of 2500 N per strip. UV stabilizer concentration is 0.5 wt % to achieve a minimum 5‑year outdoor exposure without significant loss of elongation at break.

Steel frame components are hot‑dip galvanized to a coating thickness of 85 µm, followed by a polyester powder‑coat layer of 80 µm for additional corrosion resistance and color options. Ground anchors are fabricated from 12 mm diameter steel rods with a helical tip for soil penetration.

Structural Features

• Perimeter frame includes internal tension cables (3 mm stainless steel) that maintain mesh tension under wind loads up to 150 Pa.
• Corner gussets are welded and gusseted to resist torsional moments generated by off‑center impacts.
• Ground anchoring system utilizes a turnbuckle mechanism allowing post‑installation tension adjustment of ±25 mm.
• All fasteners are grade 8.8 zinc‑plated steel bolts with nylon lock nuts to prevent loosening under vibration.

Performance Characteristics

Values represent typical results from production testing; actual performance may vary with specific installation conditions and maintenance practices.

Applications

The net system is suited for facilities that require a permanent, low‑maintenance boundary for pickleball play, including municipal recreation complexes, school athletic departments, private club installations, and tournament venues where court conversion from tennis or badminton is frequent.

Because the frame is corrosion‑protected and the mesh resists UV degradation, the product maintains dimensional stability and appearance over multiple seasons, reducing the need for seasonal replacement and associated labor costs.

Customization Options

• Frame color: standard safety yellow, white, or custom RAL‑matched powder coat.
• Mesh density: optional 40 mm or 50 mm opening sizes for varying ball speed preferences.
• Height adjustment: telescoping post brackets allowing net height variation from 0.80 m to 1.00 m.
• Anchor type: helical ground spikes, concrete‑set sleeves, or weighted base plates for surface‑mounted installations.
• Accessories: integrated scoreboard mounts, side‑line padding, and protective cover kits.

Custom specifications are quoted based on engineering drawings or detailed requirement sheets submitted by the buyer.

Quality Assurance

Each production lot undergoes incoming material verification, including HDPE melt flow index testing and steel coating thickness measurement. In‑process checks monitor weld integrity, cable tension, and dimensional tolerances of the frame.

Finished assemblies are subjected to a functional test where a regulation pickleball is projected at 30 m/s into the net mesh to verify rebound characteristics and mesh retention. Visual inspection confirms coating uniformity and absence of defects.

Documentation includes material certificates, test reports, and a conformity declaration according to ISO 9001‑2015 procedures.

Packaging and Shipping

The net mesh is rolled onto a corrugated core with protective polyethylene film, placed in a double‑wall carton sized to prevent deformation. Frame components are bundled with foam edge protectors and secured in palletized crates.

Each pallet is labeled with part number, quantity, and handling instructions. For export shipments, the packaging complies with ISPM‑15 wood treatment standards and includes moisture‑barrier liners to guard against humidity during transit.

Lead Time

Standard configurations ship within 3 weeks after receipt of purchase order and approved technical data. Customized orders require an additional 1‑2 weeks for tooling and finish validation, with exact timelines confirmed during the quotation phase.

Frequently Asked Questions

Can dimensions be customized?

Yes. Court width, height, and mesh opening size can be adjusted to meet specific facility requirements or tournament regulations.

What information is required before quotation?

A brief specification sheet indicating desired width, height, mesh size, frame color, anchor type, and any optional accessories is sufficient to generate a detailed quote.

How is quality inspected?

Quality control includes material verification, in‑process dimensional checks, weld inspection, and functional ball‑impact testing on each finished unit.

What packaging methods are available?

Standard packaging uses corrugated cartons and palletized crates; custom packaging such as reusable containers or bulk‑pack options can be arranged upon request.

Contact for Technical Inquiry

To discuss specifications, request a quotation, or arrange a sample evaluation, please use the contact form linked below. Our engineering team will respond with detailed technical data and lead‑time confirmation.
