Low Price Portable Outdoor Pickleball Nets On Wheels Supplier
This product is a self‑contained pickleball net designed for quick deployment on outdoor courts. The frame consists of steel tubing fitted with lockable casters, allowing the unit to be moved and

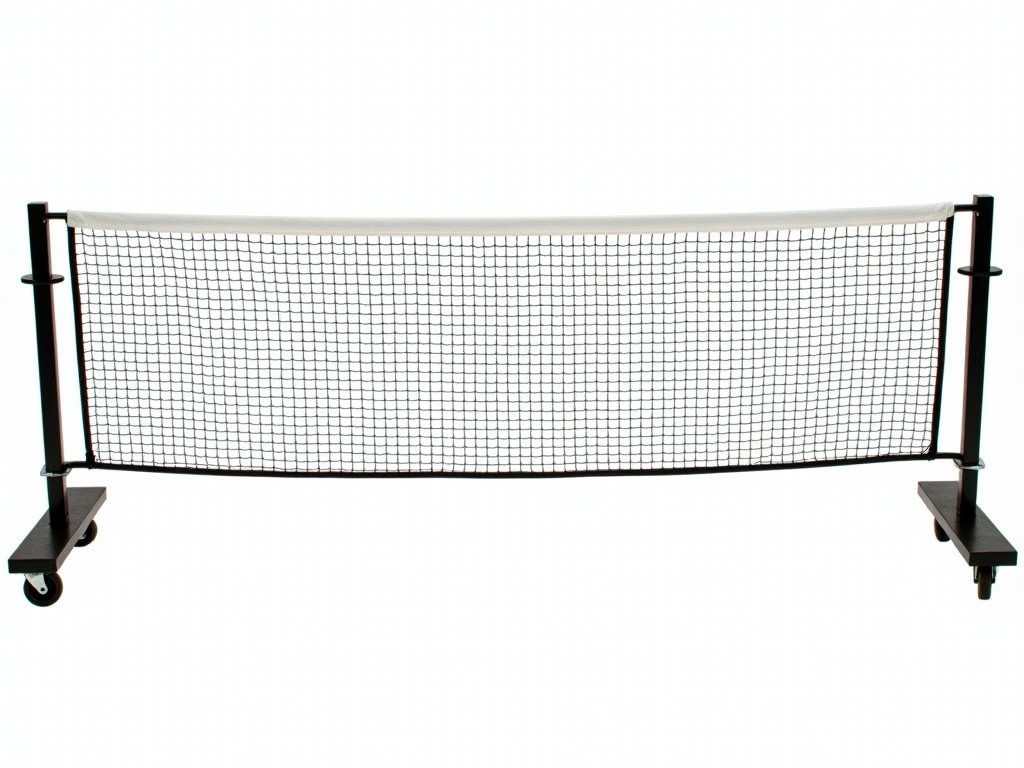

Portable Outdoor Pickleball Net System with Wheels
This product is a self‑contained pickleball net designed for quick deployment on outdoor courts. The frame consists of steel tubing fitted with lockable casters, allowing the unit to be moved and secured without additional tools. The net attaches to the frame via a tension cord system that maintains official playing height.
Design and Construction
The frame uses 1.5‑inch diameter steel tubing with a powder‑coat finish to resist corrosion. Each leg ends in a 5‑inch diameter polyurethane caster equipped with a steel lock mechanism that prevents movement during play. The net is made from 1.5 mm high‑density polyethylene mesh, treated with UV stabilizers to reduce degradation from sun exposure.
Tension is maintained by a polyester cord that runs through the net’s top and bottom edges, adjustable via cam buckles located at each post. This design eliminates the need for ground stakes or weighted bases, relying instead on the frame’s own weight and the casters’ lock to stay stationary.
Dimensions and Weight
| Parameter | Typical Value |
|---|---|
| Overall width (outside‑to‑outside) | 22 ft (6.7 m) |
| Net height at sidelines | 36 in (91 cm) |
| Net height at center | 34 in (86 cm) |
| Frame weight (net included) | 22 lb (10 kg) |
| Caster diameter | 5 in (127 mm) |
| Setup time (unbox to play) | <2 minutes |
Setup and Operation
To deploy, unlock the casters, extend the frame to its full width, and secure the casters in the locked position. Slide the net over the top tension cord, then tighten the cam buckles until the net sits flat with no sag. The entire process requires no tools and can be performed by a single person.
When storing, release the tension cord, collapse the frame by releasing the quick‑release pins at each joint, and roll the unit on its casters into a storage bag. The compact footprint measures approximately 3 ft × 1.5 ft × 8 in when folded.
Applications and Suitability
Portable net systems are ideal for locations where permanent court installation is impractical, such as school multipurpose rooms, community parks, or temporary tournament venues. The wheeled design allows staff to reconfigure spaces quickly, adapting a single area for multiple sports without damaging flooring surfaces.
Because the net relies on frame tension rather than ground anchorage, it can be used on grass, asphalt, or synthetic turf without requiring stakes or sandbags. This flexibility reduces setup time and minimizes site preparation costs.
Customization Options
- Frame color: standard black, white, or custom powder‑coat shades upon request.
- Net color: available in high‑visibility yellow, white, or team‑specific hues.
- Caster type: optional swivel‑lock or rigid polyurethane wheels for specific floor conditions.
- Accessories: carry bag, extra tension cords, and corner protectors.
Quality Considerations
All steel joints are welded using MIG processes and inspected for penetration uniformity before coating. The powder‑coat layer meets a minimum thickness of 60 µm to provide barrier protection against moisture. Net mesh undergoes a tensile test of at least 30 N per strand to ensure resistance to impact from balls and paddle contact.
UV stabilizers are blended into the polyethylene at a concentration of 0.5 % by weight, extending the expected service life to three years under continuous outdoor exposure. Casters are sealed to prevent ingress of dust and water, maintaining roll resistance under load.
Frequently Asked Questions
Can the net height be adjusted for different play levels? Yes, the tension cord allows adjustment between 34 in and 36 in at the center, accommodating both recreational and official play.
What information is required for a quotation? Provide desired quantity, frame color preference, net color, and any accessory needs (e.g., carry bag, extra cords).
Are the casters suitable for indoor gym floors? The polyurethane casters are non‑marking and rated for loads up to 250 lb each, making them appropriate for polished wood or synthetic gym surfaces.
How is the product packaged for shipment? Units are packed in corrugated cardboard boxes with foam end caps; each box contains one net system and accessories, dimensions approximately 4 ft × 2 ft × 6 in.
What is the typical production lead time? Lead time ranges from 10 to 15 business days for standard configurations; custom colors may extend this period.
Get a Quote
To discuss specifications, pricing, or delivery options for your facility, please use the contact link below. Our technical team will respond with a detailed quotation and lead‑time estimate.
