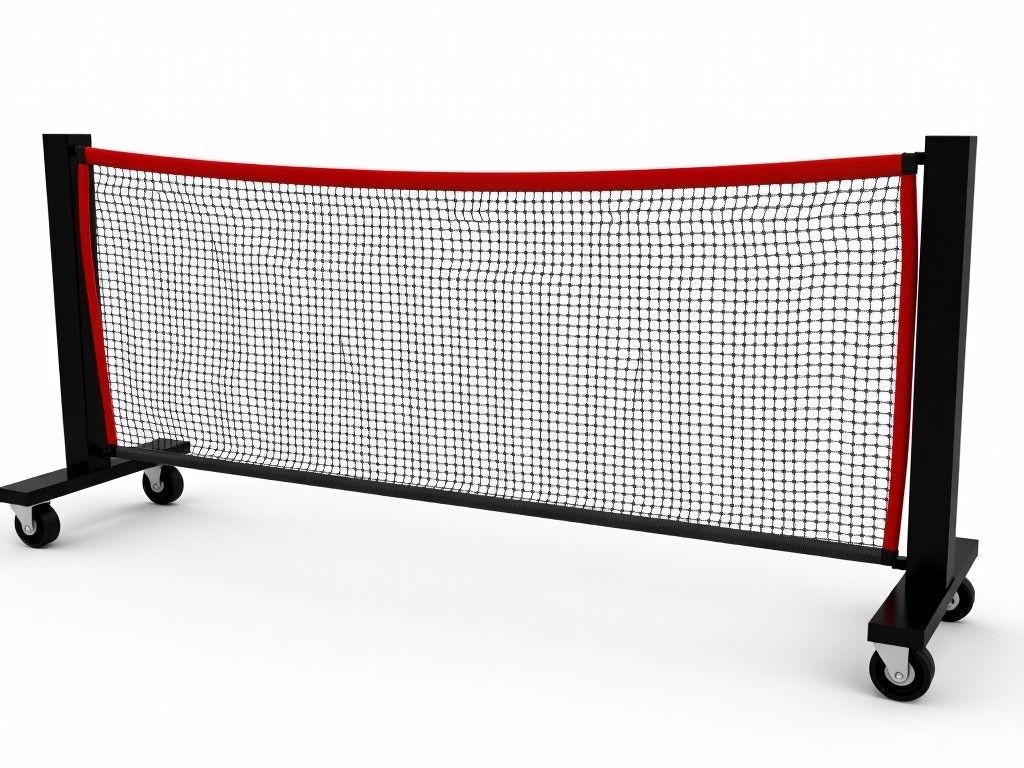

Wholesale Portable Pickleball Nets On Wheels Company
A portable pickleball system must combine rapid deployment with structural stability under repeated impact. The frame utilizes 1.5 mm cold‑rolled steel tubing formed into a rectangular base that
Portable Pickleball Nets on Wheels – Wholesale Solutions
Design Overview
A portable pickleball system must combine rapid deployment with structural stability under repeated impact. The frame utilizes 1.5 mm cold‑rolled steel tubing formed into a rectangular base that resists torsional twist when lateral forces reach 150 N. Integrated wheel locks engage automatically when the net is tensioned, preventing unintended movement during play.
Frame and Wheel System
Each unit features two 200 mm diameter polyurethane‑coated casters with a load rating of 250 kg per wheel. The casters incorporate sealed precision bearings to minimize rolling resistance, allowing a single operator to reposition the net over a 10 m court surface in under 8 seconds. Wheel brackets are welded using 3 mm fillet welds and undergo magnetic particle inspection to detect surface discontinuities.
- Frame weight: 18 kg (net excluded)
- Wheelbase width: 1.2 m for balanced center‑of‑gravity
- Locking mechanism engages at 0.5 mm deflection
Net Material and Tensioning
The playing surface is constructed from 2.1 mm polyethylene‑coated polyester mesh, offering a tensile strength of 45 MPa and UV stabilization rated for 1500 hours of direct sunlight exposure. Edge bindings are double‑stitched with 3‑ply nylon thread to prevent fraying under repeated ball impact.
Tension is maintained via a ratchet‑type tensioning system integrated into each post, adjustable from 80 N to 150 N with a 5 N increment scale. A built‑in load indicator shows real‑time tension, reducing setup variability to ±3 N.
Typical Dimensions and Packaging
| Parameter | Value |
|---|---|
| Overall length (net width) | 6.10 m |
| Height at posts | 0.91 m |
| Depth (wheelbase to net) | 0.30 m |
| Total weight (net + frame) | 22 kg |
| Packed dimensions (L×W×H) | 1.20 m × 0.25 m × 0.20 m |
| Carton quantity per pallet | 30 units |
Applications in Facility Settings
Portable nets on wheels are suited for multi‑use gymnasiums where court lines must be re‑configured for basketball, volleyball, and pickleball within the same day. The low‑profile wheelbase permits nesting under standard storage racks, reducing floor footprint by 40 % compared with fixed‑post systems. Additionally, the non‑marking polyurethane wheels prevent damage to polished wood or synthetic flooring surfaces.
Customization Options
- Frame finish: powder‑coated RAL colors or galvanized zinc
- Net mesh size: 2.1 mm (standard) or 1.8 mm for faster ball rebound
- Wheel type: swivel lock casters or fixed directional wheels
- Tensioning mechanism: ratchet, cam lever, or spring‑assist
- Branding: silk‑screened logos on post sleeves (up to 2 colors)
Quality Control and Testing
Each completed unit undergoes a three‑stage verification: dimensional inspection using a coordinate measuring machine (±0.5 mm tolerance), load‑cycle testing of the wheel locks (10 000 engagements at 150 N), and tension‑hold assessment (maintaining set load for 24 hours with <2 % drift). Documentation of test results is retained for traceability and can be supplied upon request.
Lead Time and Ordering
Standard configurations ship within 3 weeks from receipt of purchase order. Custom finishes or specialized wheel assemblies extend lead time to 4‑5 weeks. Minimum order quantity for wholesale pricing is 20 units; volume discounts apply at 50‑unit increments. All quotations include EXW factory pricing; freight and insurance are arranged per buyer’s specifications.
To initiate a quote, provide the desired frame finish, net mesh specification, wheel type, and any branding details. Our engineering team will return a detailed technical drawing and cost breakdown within two business days.
Frequently Asked Questions
- Can the net height be adjusted for different age groups?
- Yes, the telescoping posts allow height settings from 0.76 m to 1.07 m in 25 mm increments, secured with dual‑lock pins.
- What information is required before a quotation?
- Required inputs include quantity, frame finish, net mesh size, wheel configuration, and any custom artwork for branding.
- How are export shipments protected?
- Units are packed in double‑wall corrugated cartons with corner protectors and stretch‑film wrapping; pallets are ISPM‑15 compliant and secured with PET straps.
- What is the typical production lead time?
- Standard models: 15‑20 working days; customized orders: 25‑30 working days, subject to component availability.
Contact for Quote
For technical inquiries or to request a formal quotation, please reach out to our sales engineering team. We will review your specifications and provide a detailed response that includes lead time, pricing, and compliance documentation.
