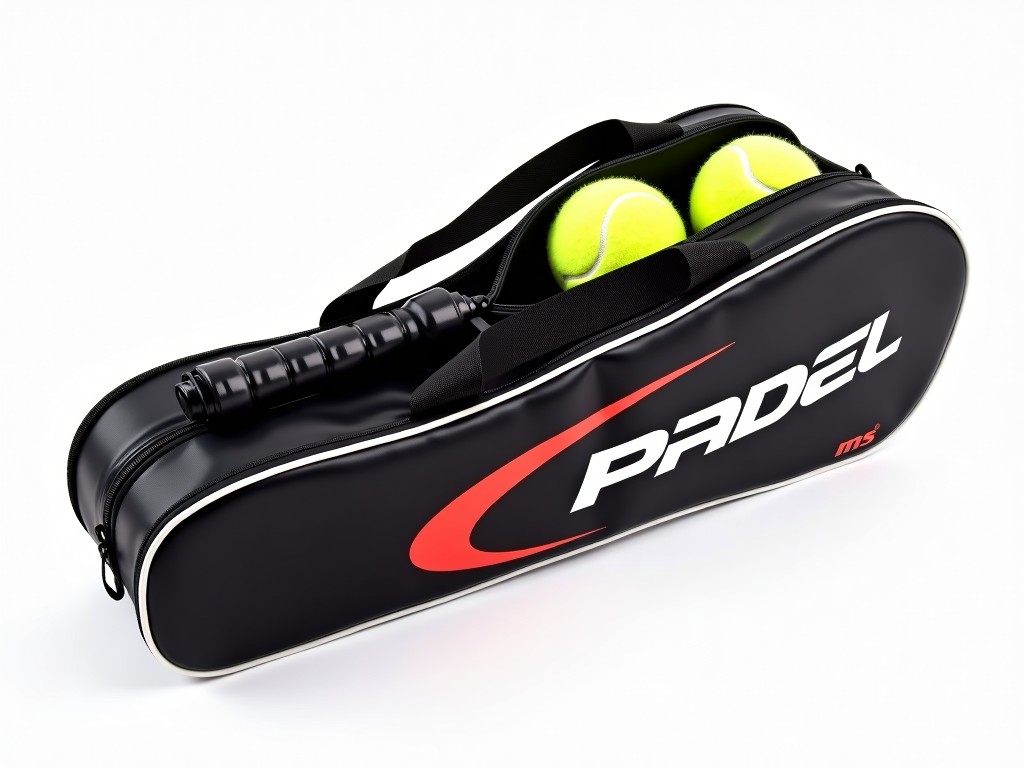

Custom Padel Tennis Racket Carry Bag Factory
A padel racket carry bag protects the frame and strings from impact, moisture, and UV exposure during transport to courts, clubs, or tournaments. The bag’s interior layout prevents rackets from
Custom Padel Tennis Racket Carry Bag Factory
Materials and Construction
The outer shell commonly uses 600D polyester or 1000D nylon woven with a tight ripstop pattern, providing tensile strength above 45 MPa and tear resistance exceeding 12 N. A laminated PVC or PU coating adds water repellency, achieving a hydrostatic head of at least 1500 mm while remaining flexible below -10 °C.
Inside, a 5 mm closed‑cell foam layer cushions the racket head, absorbing shock energies up to 30 J without permanent deformation. Reinforced bar‑tack stitching at stress points, such as strap attachments and zipper pulls, increases seam strength to over 250 N, exceeding typical load scenarios.
Customization Options
- External dimensions: length 70 – 80 cm, width 20 – 25 cm, depth 10 – 15 cm, adjustable in 2 cm increments.
- Number of racket compartments: single, double, or triple, each with independent zippered access.
- Strap configurations: padded shoulder strap, dual‑hand carry handles, or detachable trolley sleeve.
- Closure types: YKK coil zippers with water‑resistant flap, magnetic snap, or roll‑top buckle.
- Branding areas: silk‑screen, heat‑transfer, or embroidery on front panel, side gussets, or interior lining.
- Interior accessories: mesh pocket for balls, elastic loop for overgrip, or RFID tag pouch.
Manufacturing Process
Cutting is performed on CNC‑guided rotary dies to maintain tolerance within ±0.5 mm, ensuring panel alignment before assembly. Sewing uses 301 lockstitch with polyester thread, followed by automated bar‑tack reinforcement at corners and strap loops. Final bonding of the PVC coating to the fabric substrate is achieved via heat‑lamination at 150 °C, creating a uniform barrier without delamination.
Quality Control
- Seam tensile test: each batch samples 5 % of units, applying a 150 N load at 100 mm/min; acceptable elongation ≤ 8 %.
- Abrasion resistance: Martindale tester, 5000 cycles, no visible surface wear or coating loss.
- Water‑spray test: 10 min exposure at 3 L/min, interior moisture gain ≤ 0.2 g.
- Load simulation: 2 kg weight dropped from 15 cm onto bag exterior, no seam rupture or foam compression set > 5 %.
- Visual inspection: stitching uniformity, zipper function, and logo placement verified under 500 lux lighting.
Applications
Sports distributors require bags that withstand repeated handling in warehouse pallets and retail display, where UV‑stable coatings prevent fading during shelf life of 12 months. Club operators benefit from custom‑size compartments that fit their standard racket models, reducing the need for multiple SKUs and simplifying inventory management. OEMs seeking private‑label solutions can specify exact foam thickness and strap ergonomics to match their brand’s performance claims, ensuring the carry bag reinforces the perceived quality of the racket itself.
Technical Specifications
| Parameter | Typical Value | Customizable? |
|---|---|---|
| Outer Fabric | 600D polyester with PU coating | Yes (nylon, 1000D, PVC) |
| Foam Thickness | 5 mm closed‑cell EVA | Yes (3‑8 mm) |
| Internal Volume | 2.5 L – 4.0 L | Yes (per compartment) |
| Weight (empty) | 350 g – 550 g | Yes (material dependent) |
| Maximum Load | 8 kg | No (design limit) |
| Zipper Type | YKK #5 coil | Yes (water‑resistant, concealed) |
| Strap Width | 38 mm | Yes (25‑50 mm) |
Frequently Asked Questions
Can dimensions be adjusted to fit specific racket models?
Yes. Length, width, and depth are modified in 2 cm increments based on supplied racket measurements or standard model data.
What information is required before quotation?
Required details include target quantity, preferred outer fabric, foam thickness, number of compartments, strap type, logo artwork file (vector or high‑resolution PNG), and any special features such as RFID pocket or water‑proof zipper.
Which materials are available for the outer shell?
Standard options are 600D polyester with PU coating, 1000D nylon with PVC coating, and a recycled PET variant. Custom blends can be sourced upon request.
How is quality inspected before shipment?
Each lot undergoes seam tensile testing, abrasion resistance checks, water‑spray verification, and a 100 % visual inspection of stitching, zipper function, and logo placement. Test reports are available on request.
What packaging methods are available for export?
Bags are packed flat in poly‑bags, then placed in export‑grade cartons with corner protectors. Palletizing follows ISPM‑15 standards, and humidity‑absorbing packets can be added for long‑sea transit.
Contact Us
To discuss your custom padel racket carry bag requirements, request a sample, or receive a detailed quotation, please reach out via our inquiry form. Our engineering team will review your specifications and provide a feasibility assessment within one business day.
